This product is suitable for children with cerebral palsy aged 2 to 6 years old to maintain sitting position, maintain sitting balance, correct sitting posture, and prevent and treat deformities.
- Item No.:
YB-915
- Series:
Children’s Rehabilitation Series
- Usage:
Suitable for 2-6 year old children with cerebral palsy to maintain sitting position, sit balance, correct sitting posture, prevent and treat deformity.
- Remark：
The leather color can be customized.

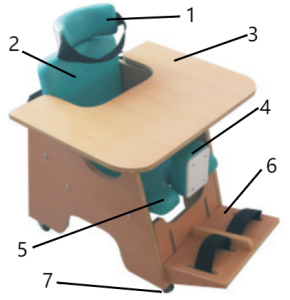

Construction
1. Head Pad
2. Backrest Cushion
3. Countertop
4. Crotch Pad
5. Seat Cushion
6. Foot Pedal
7. Casters
Data sheet
Size:
720×600×800mm
Adjustment Range:
✳Head cushion lifting adjustment range / mm: 0-120
✳Crotch cushion front and rear adjustment range / mm: 0-100
✳Maximum distance from seat cushion to footrest / mm: 170
✳Distance from table to seat cushion / mm: 210
✳Footrest height adjustment distance mm: 80
✳Crotch cushion front and rear adjustment range / mm: 0-100
✳Maximum distance from seat cushion to footrest / mm: 170
✳Distance from table to seat cushion / mm: 210
✳Footrest height adjustment distance mm: 80
Material:
✳Wood
✳Electrostatic spray frame
✳High resilience sponge
✳PU bed surface
✳Electrostatic spray frame
✳High resilience sponge
✳PU bed surface
Load:
40kg
Instructions For Use
✳Loosen the table straps and pull the table out of the slide.
✳Loosen the crotch pad adjustment bolts and move the crotch pad outward to the maximum adjustment range.
✳Adjust the side pads according to the child’s physique
✳Hold the child into the chair and adjust the headrest, crotch pad, and side pads to the appropriate position.
✳After pushing the table into the appropriate position according to the slide, fix it with the table straps, and place the child’s arms on the table.
✳Adjust the height of the foot pads until the child’s feet can rest on the pads. If the child is smaller, add appropriate pads to the seat and foot pads.
✳After the training, just loosen the table straps and pull the table out of the slide to hold the child out.
✳Loosen the crotch pad adjustment bolts and move the crotch pad outward to the maximum adjustment range.
✳Adjust the side pads according to the child’s physique
✳Hold the child into the chair and adjust the headrest, crotch pad, and side pads to the appropriate position.
✳After pushing the table into the appropriate position according to the slide, fix it with the table straps, and place the child’s arms on the table.
✳Adjust the height of the foot pads until the child’s feet can rest on the pads. If the child is smaller, add appropriate pads to the seat and foot pads.
✳After the training, just loosen the table straps and pull the table out of the slide to hold the child out.
Other Information
1. Precautions
✳Before using the product, you should read the product manual in detail, familiarize yourself with the product’s performance, requirements and operating methods, and perform an unloaded operation inspection on the product. The seat can only be used after it is confirmed to be in good and normal condition.
✳Children should conduct sitting posture correction training under the guidance of a rehabilitation therapist and with the help of a nursing staff. The effect will be better if the child’s mother accompanies the child. Sitting posture correction training should follow the principle of “gradual progress” and gradually increase the training time.
✳When children are doing sitting posture correction training and sitting, some toys or other children’s rehabilitation equipment can be placed on the table, and the nursing staff or the child’s mother can practice with the child. Language training suitable for the child’s intelligence can also be carried out.
✳The control of training time should take into account the time pattern of children’s urination and defecation.
✳During training, it is not advisable to push and pull the seat quickly to avoid scaring the child.
2. Maintenance and care
✳All parts of the sitting posture correction chair should be kept clean and wiped lightly with a clean soft cloth regularly.
✳If the parts are damaged, please contact the manufacturer in time for repair.
3. Packaging, transportation and storage
✳The product is packed in wooden boxes.
✳The product can be transported by ordinary means of transportation. It should be handled with care during transportation. It should not be subjected to heavy pressure or collision. It should be protected from the sun and rain. It is forbidden to mix it with pollutants.
✳The product should be stored in a dry, ventilated room without corrosive substances. It should not be subjected to heavy pressure or collision.
✳Before using the product, you should read the product manual in detail, familiarize yourself with the product’s performance, requirements and operating methods, and perform an unloaded operation inspection on the product. The seat can only be used after it is confirmed to be in good and normal condition.
✳Children should conduct sitting posture correction training under the guidance of a rehabilitation therapist and with the help of a nursing staff. The effect will be better if the child’s mother accompanies the child. Sitting posture correction training should follow the principle of “gradual progress” and gradually increase the training time.
✳When children are doing sitting posture correction training and sitting, some toys or other children’s rehabilitation equipment can be placed on the table, and the nursing staff or the child’s mother can practice with the child. Language training suitable for the child’s intelligence can also be carried out.
✳The control of training time should take into account the time pattern of children’s urination and defecation.
✳During training, it is not advisable to push and pull the seat quickly to avoid scaring the child.
2. Maintenance and care
✳All parts of the sitting posture correction chair should be kept clean and wiped lightly with a clean soft cloth regularly.
✳If the parts are damaged, please contact the manufacturer in time for repair.
3. Packaging, transportation and storage
✳The product is packed in wooden boxes.
✳The product can be transported by ordinary means of transportation. It should be handled with care during transportation. It should not be subjected to heavy pressure or collision. It should be protected from the sun and rain. It is forbidden to mix it with pollutants.
✳The product should be stored in a dry, ventilated room without corrosive substances. It should not be subjected to heavy pressure or collision.
